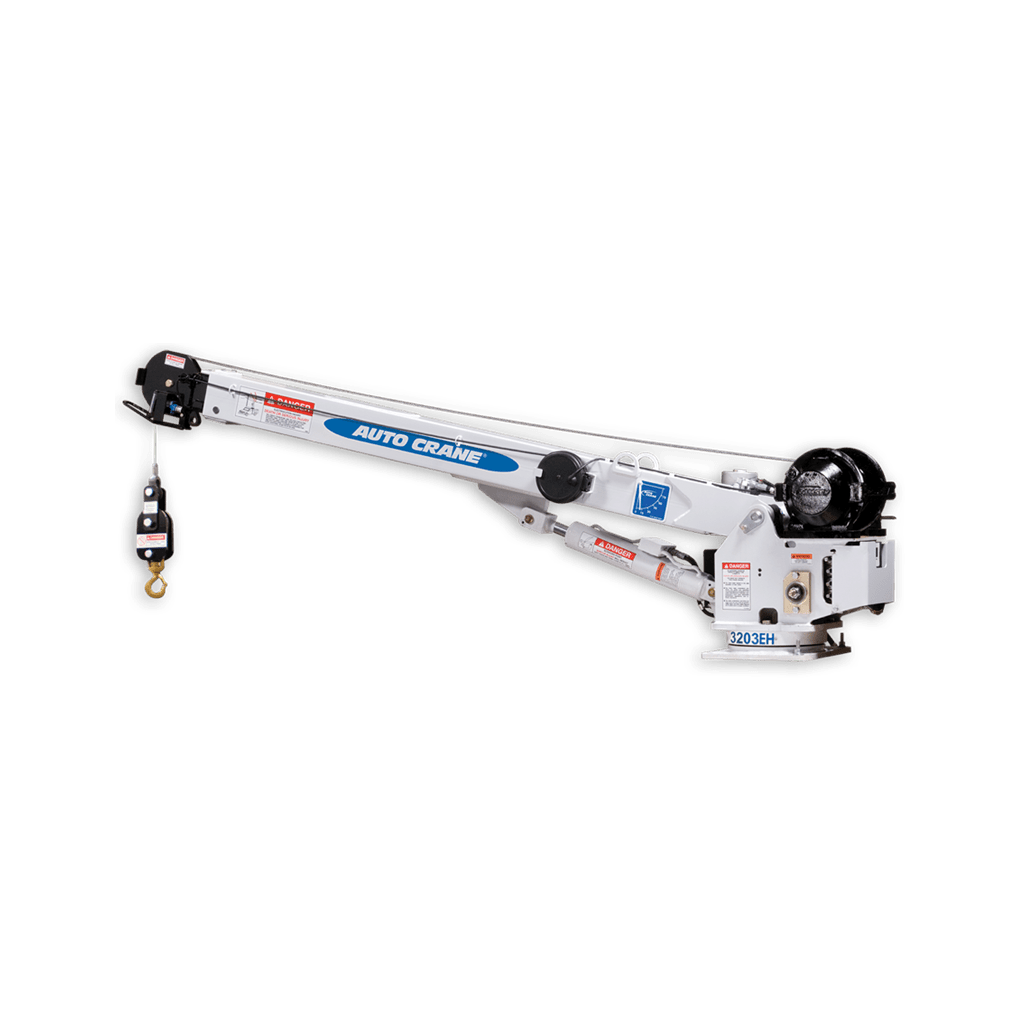

EHC-3 PPRFX 15' CRANE

Call to Order 800-858-2883
Schedule Your Pick Up Today!

EHC-3 PRFX 15'
Hydraulic boom extension to 15', with tether cable

Part Number: 320990004

Standard Features
- 100% stability around truck with Titan 16 body and outriggers
- Proportional control for NexStar models
- Meets or exceeds ASME B30.5
- 370° rotation with sealed slewing drive (NexStar)
- Comprehensive 2-year warranty starting at in-service

Options
- NexStar, wireless, or hard-wired control
- Electric or hydraulic hoist
- Hydraulic, Manual-Hydraulic, or Manual extension
- LED boom tip lights

Specifications
- Capacity: 3,200 lb
- Rating: 10,000 ft-lb
- Reach: 15 ft
-Rotation: 360° continuous for hard-wired
and wireless
- Cable: 62 ft of 7/32"
- Chassis GVW: 8,800 lb min
- Weight: 690 lbs
- Boom Angle: -5° to 75°
- Hoist Speed: 30 fpm
- Electric Supply: 12V
