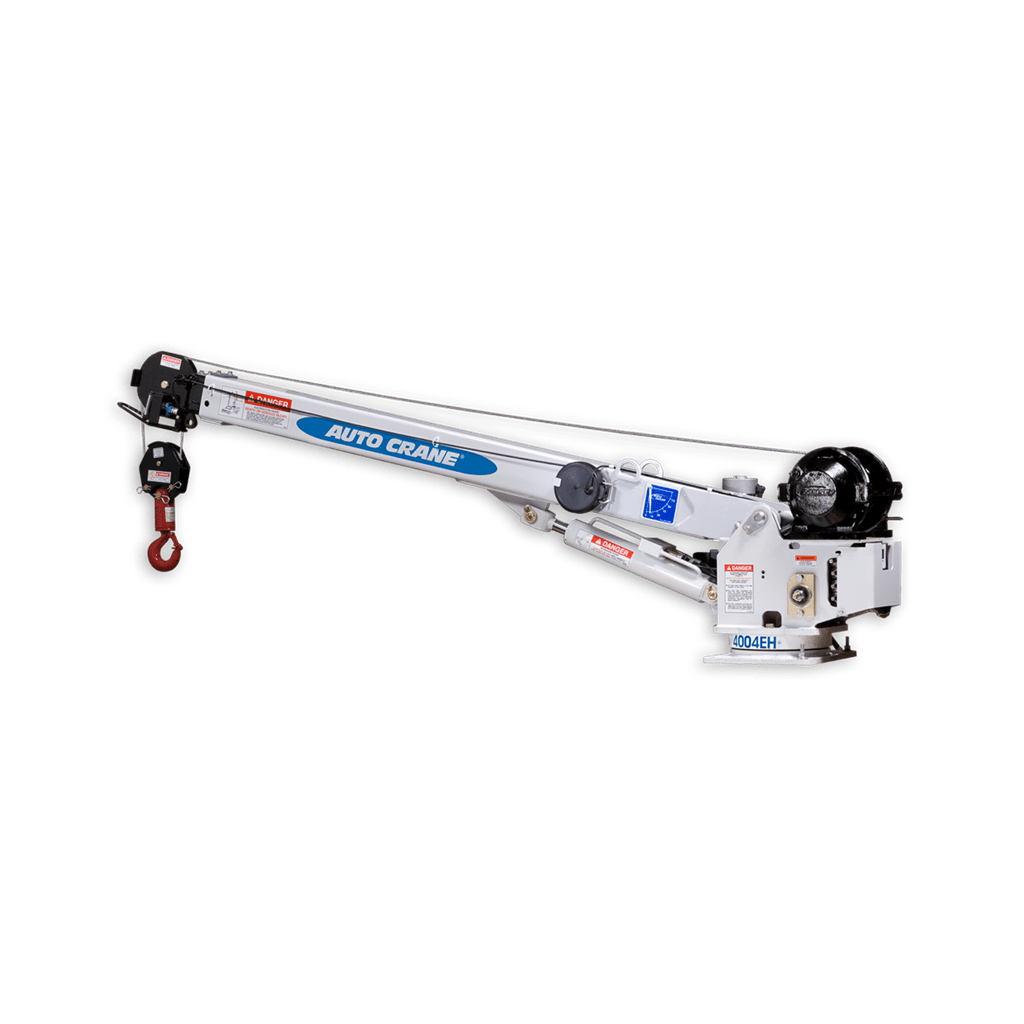

EHC-4 HARD-WIRED CONTROL 20' CRANE

Call to Order 800-858-2883
Schedule Your Pick Up Today!

EHC-4 Hard Wired Control 20'
Hydraulic boom extension to 16', manual extension to 20'

Part Number: 404240020

Standard Features
- 100% stability around truck with Titan 16 or Titan 38 body and outriggers
- Proportional control for NexStar models
- Open hook attachment
- Meets or exceeds ASME B30.5
- 370° rotation with sealed slewing drive (NexStar)
- Comprehensive 2-year warranty starting at in-service

Options
- NexStar, wireless, or hard-wired control
- Electric or hydraulic hoist
- LED boom tip lights

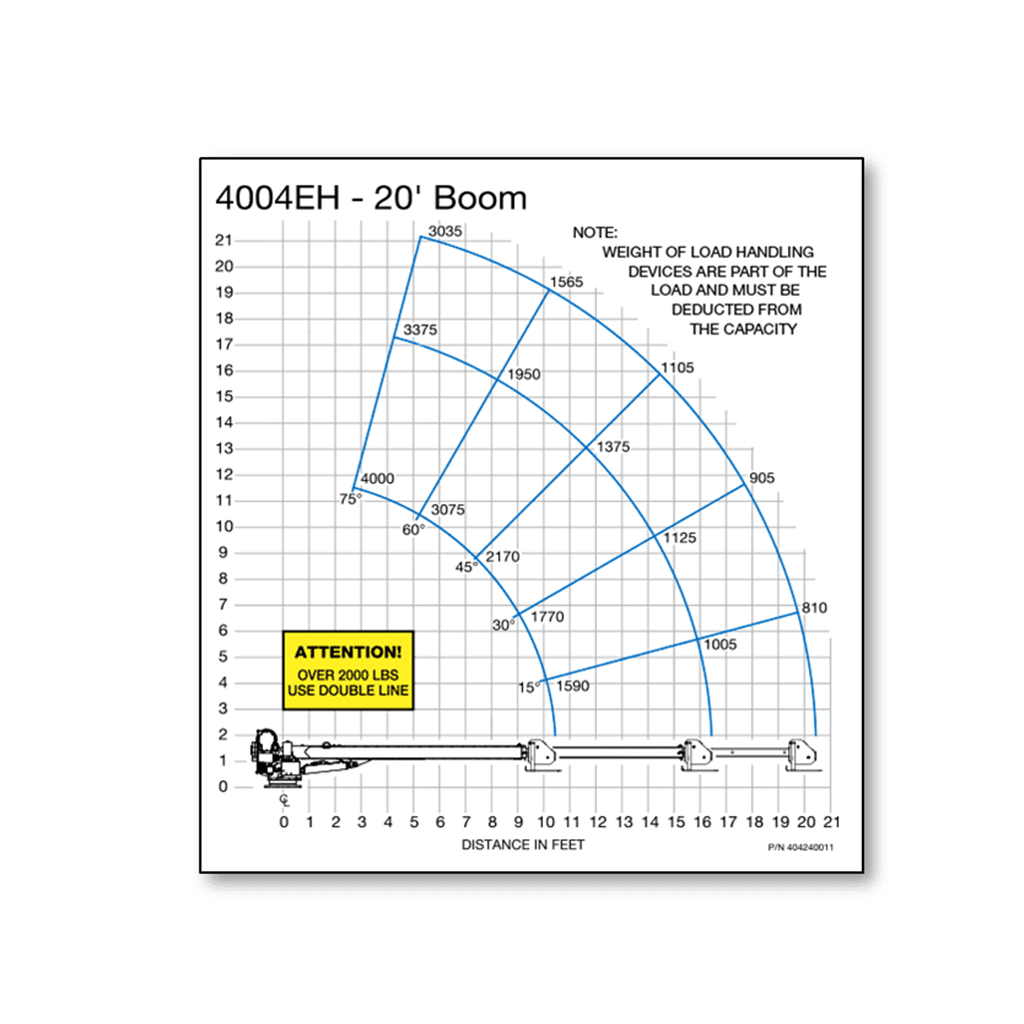

Specifications
- Capacity: 4,000 lb
- Rating: 16,000 ft-lb
- Reach: 20 ft
- Rotation: 360° continuous for hard-wired and wireless models
- Cable: 80 ft of 5/16"
- Chassis GVW: 10,500 lb min
- Weight: 890 lbs
- Boom Angle: -5° to 75°
- Hoist Speed: 30 fpm
- Electric Supply: 12V
