EHC-5 NEXSTAR 4 WIRELESS CRANE

Call to Order 800-858-2883
Schedule Your Pick Up Today!

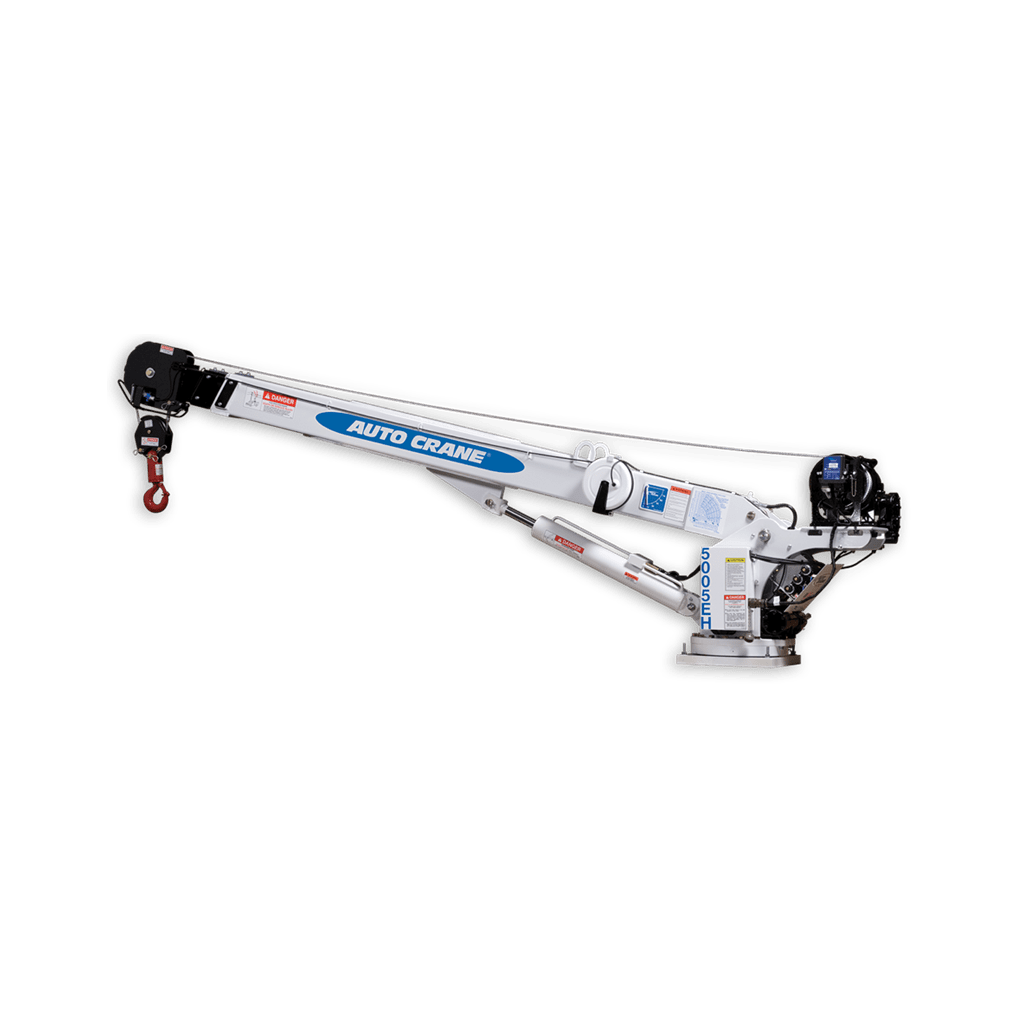

EHC-5 Nexstar 4 Wireless
450 degree non-continuous rotation, with tether cable

Part Number: 360646003

Standard Features
- 100% stability around truck with Titan 38 body and outriggers
- Proportional control for NexStar models
- Meets or exceeds ASME B30.5
- Open hook attachment
- 450° rotation with sealed slewing drive (NexStar)
- Comprehensive 2-year warranty starting at in-service

Options
- NexStar, wireless, or hard-wired control
- LED boom tip lights

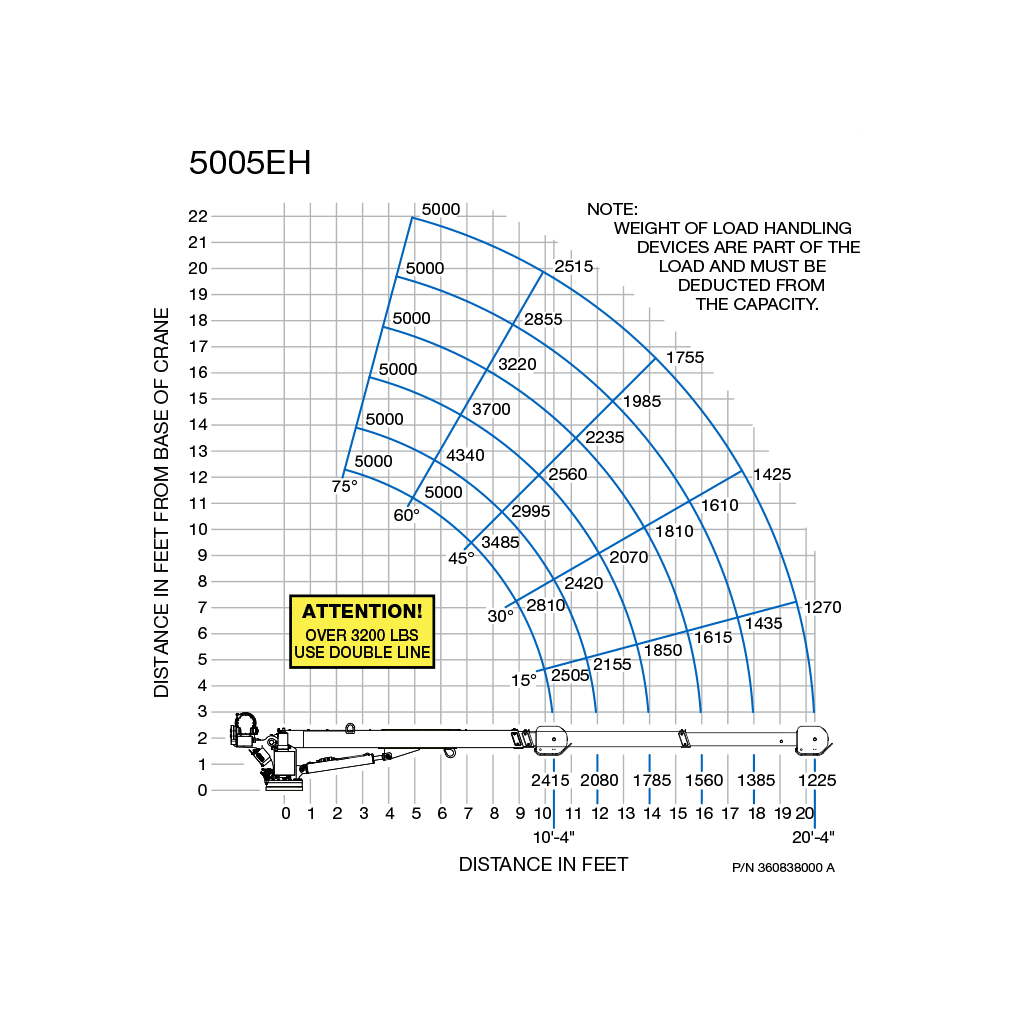

Specifications
- Capacity: 5,000 lb
- Rating: 25,000 ft-lb
- Reach: 20 ft
- Cable: 80 ft of 5/16"
- Chassis GVW: 14,500 lb min
- Weight: 1,455 lbs
- Boom Angle: -14° to 75°
- Hoist Speed: 36 fpm
- Electric Supply: 12V
