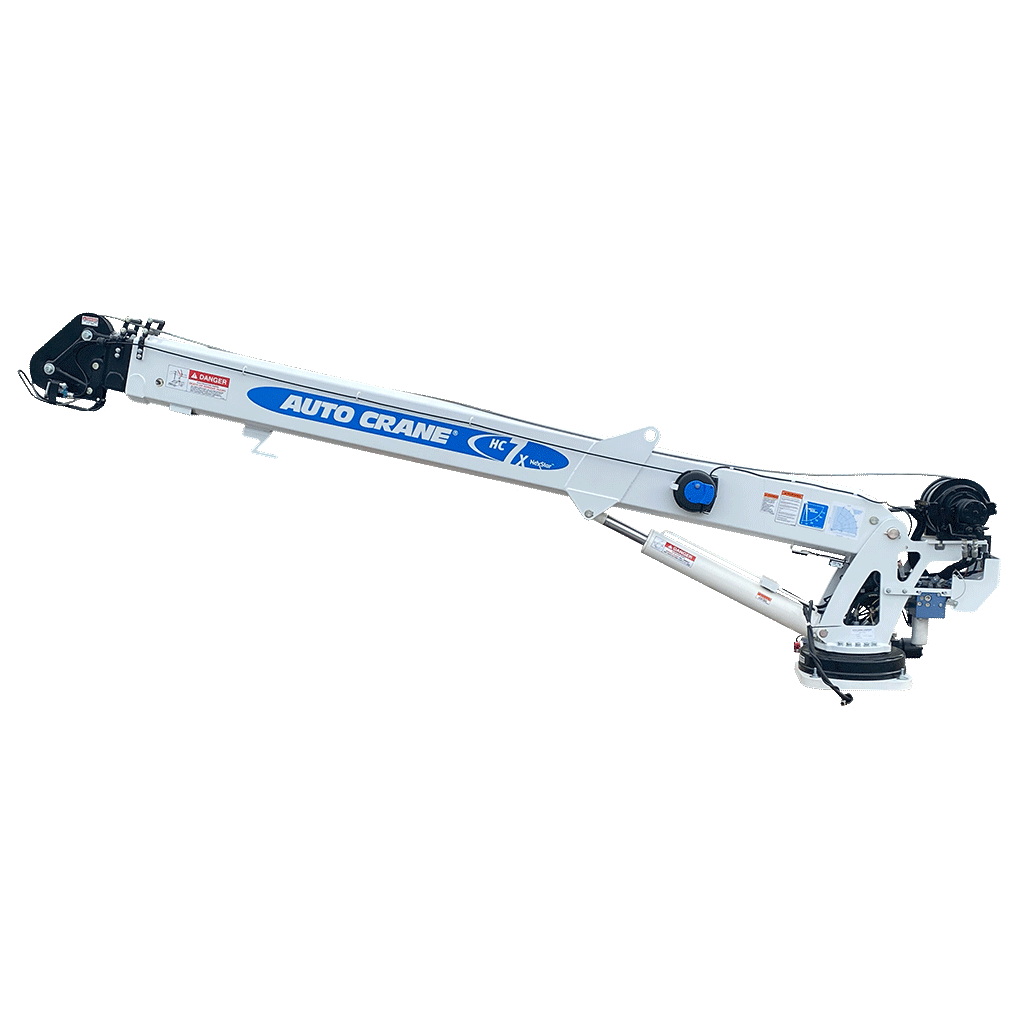

HC-7X NEXSTAR 4 WIRELESS CRANE

Call to Order 800-858-2883
Schedule Your Pick Up Today!

HC-7X Nexstar 4 Wireless
450 degree non-continuous rotation, with tether cable

Part Number: 477000003

Standard Features
- 100% stability around truck with Titan 38 body and outriggers
- Proportional control
- Meets or exceeds ASME B30.5
- Open hook attachment
- 450° rotation with sealed slewing drive
- Comprehensive 2-year warranty starting at in-service

Options
- LED boom tip lights

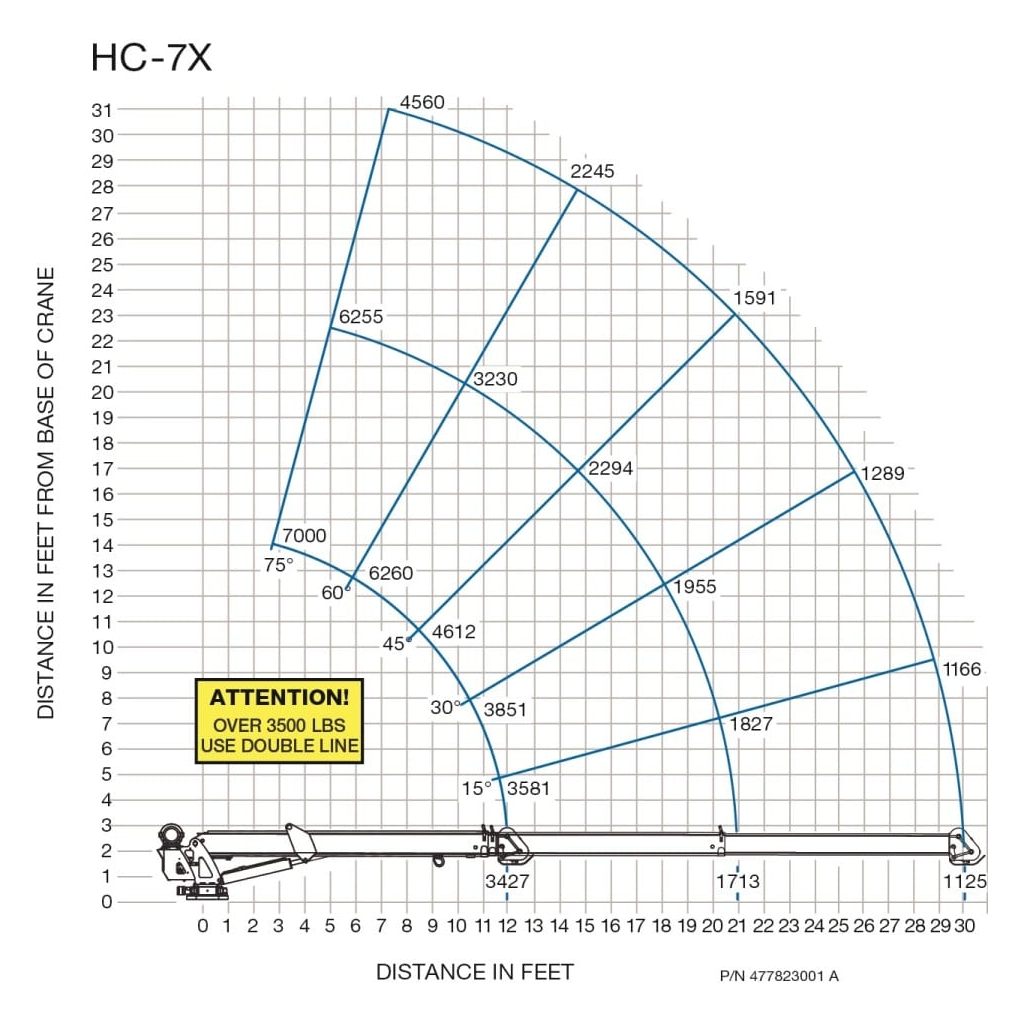

Specifications
- Capacity: 7,000 lb
- Rating: 43,000 ft-lb
- Reach: 30 ft
- Cable: 120 ft of 3/8"
- Chassis GVW: 19,500 lb min
- Weight: 1,865 lbs
- Boom Angle: -12° to 75°
- Hoist Speed: 55 fpm
- Hydraulic Power: 8 gpm @ 2,750 psi
