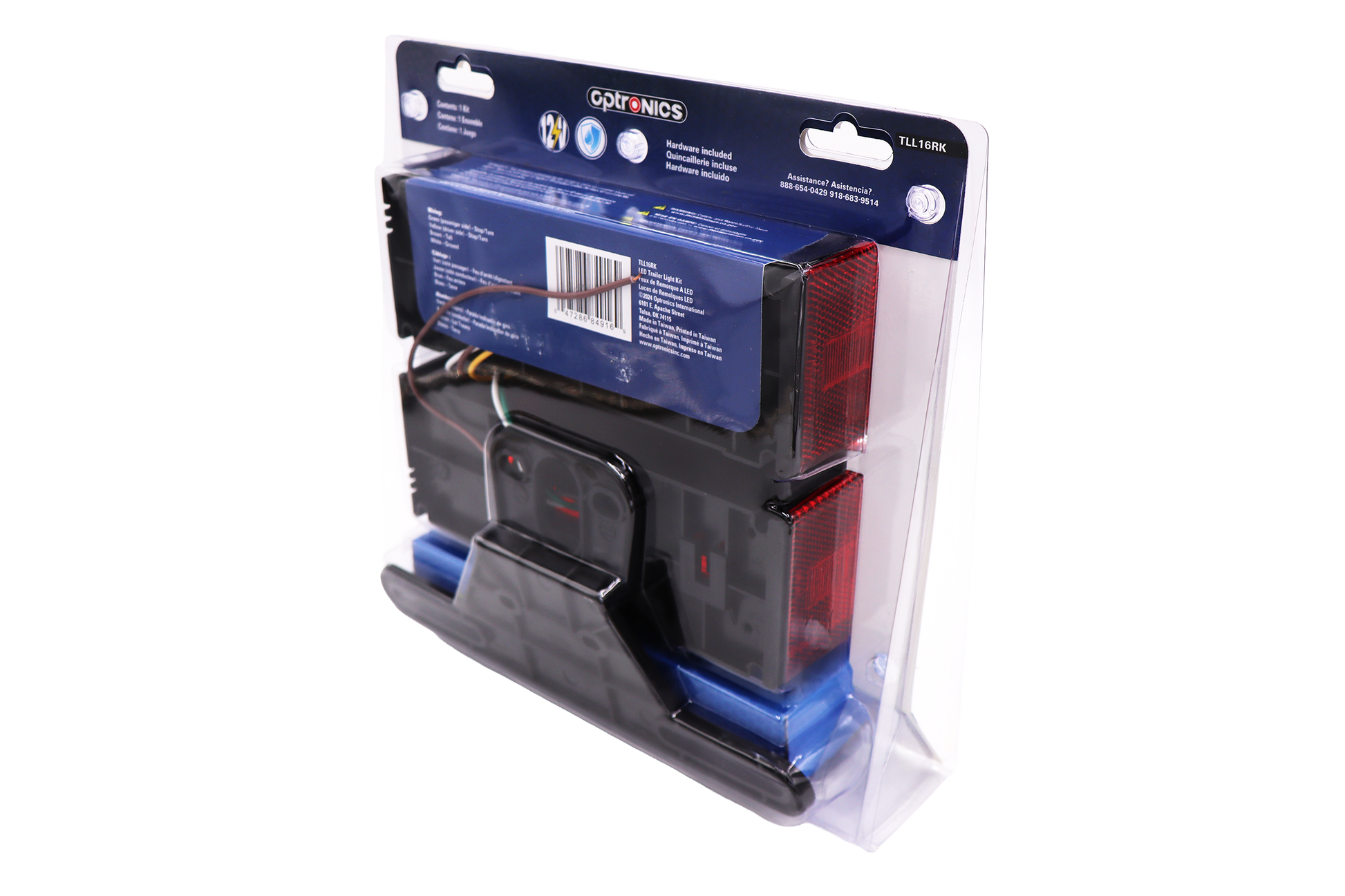

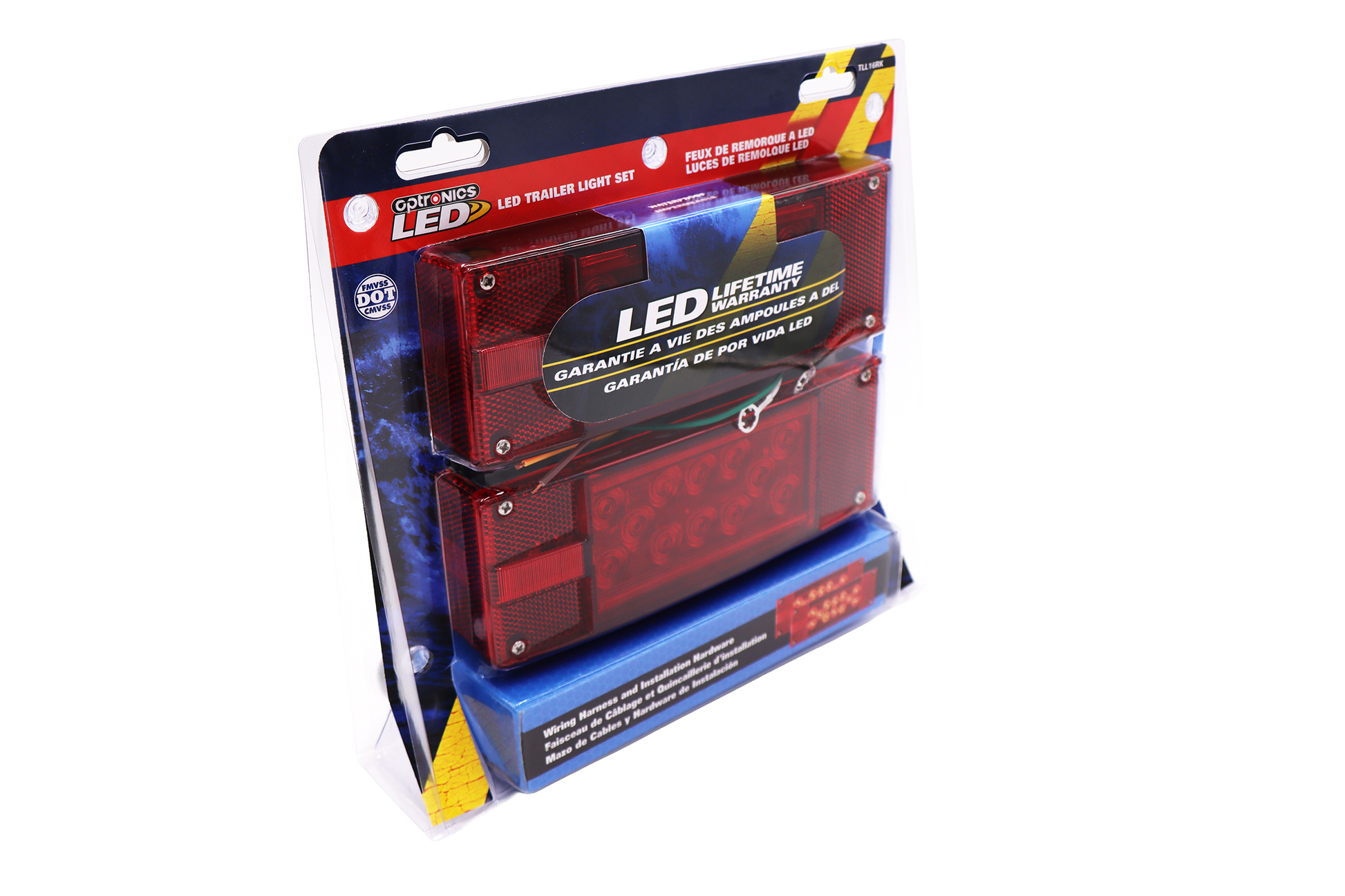

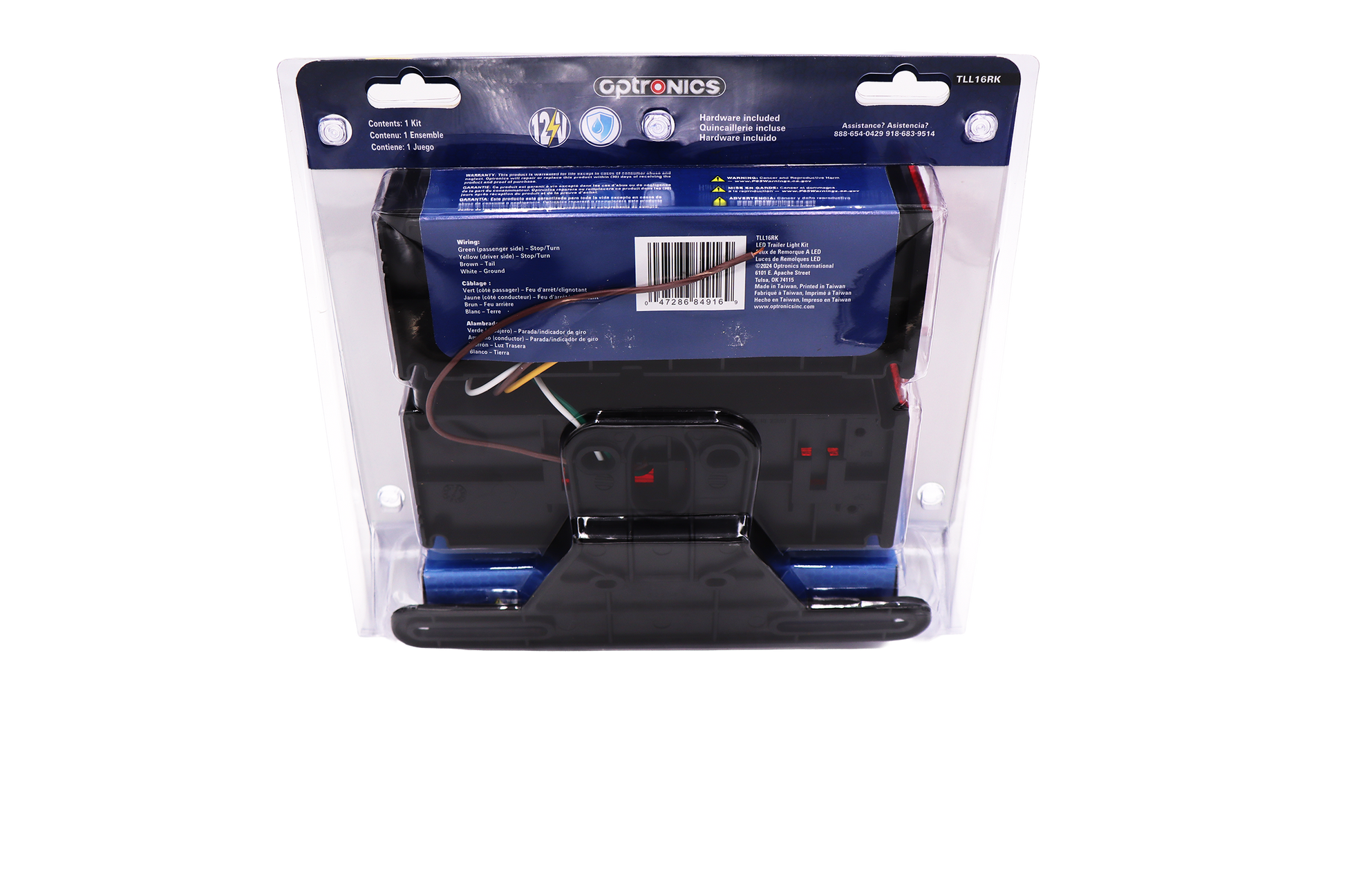

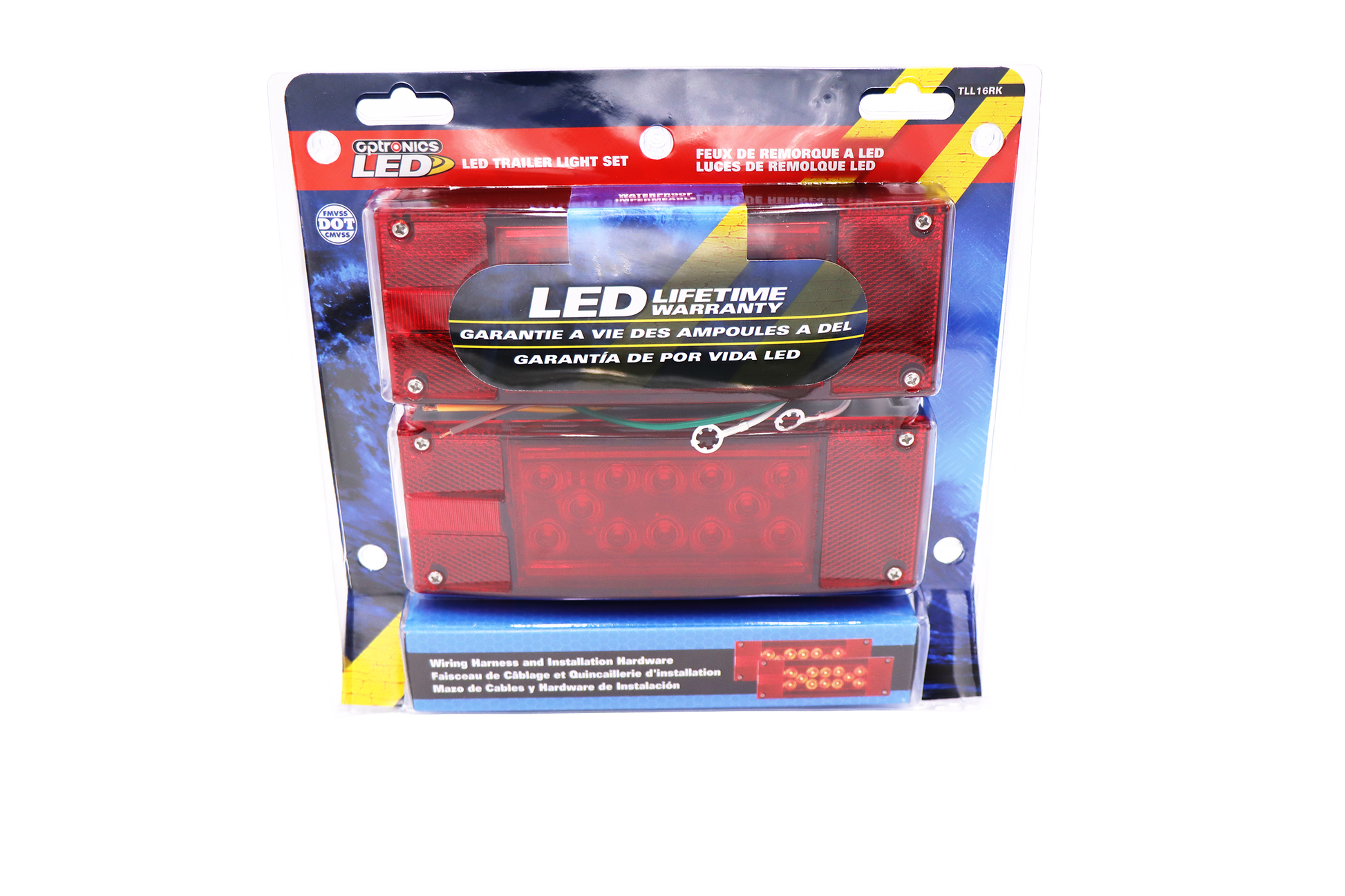

LED Trailer Taillight Combination

Optronics Trailer Lights - TLL16RK

8-1/16" x 2-7/8" Rectangle. Waterproof lights act as brake, tail, turn, side marker, side reflex, rear clearance, rear reflex, and license plate light for trailers. Surface mount - hardware included. 3-Wire pigtail. 25' Wiring harness.

Features:

• Rectangular combination tail lights are designed to serve 7 functions on trailers over 80" wide when properly mounted
  • Stop, tail, turn, side marker, side reflex, rear clearance, and rear reflex
  • Built-in license plate light on driver's-side light illuminates license plate
• Sealed, waterproof construction is submersible
  • Designed for marine trailer applications
• Durable surface-mount technology (SMT) construction of LED circuit board
  • Better withstands shock and vibration
  • Allows for improved heat distribution
• LEDs make great replacements for incandescent lights
  • Last 50 times longer
  • More efficient - provide brighter light with less power output
  • No bulbs to replace - no brittle filaments
• Red acrylic lens screws on and can be easily replaced
• Molded plastic housing
• Mounts on surface of trailer - stainless steel hardware included
  • Includes license plate bracket for mounting driver's side light
• 3-Wire pigtail
  • 25-Ft Wiring harness for making connections
• DOT compliant
  • Meets FMVSS 108 and CMVSS 108 requirements for automotive lighting
• P2PC rated

Specs:

• Configuration: driver side (STL17RB)
  • Passenger side (STL16RB)
• Dimensions: 8-1/16" long x 2-7/8" tall x 2-13/16" deep
• Diodes: 40
  • Driver's-side light: 22 diodes
  • Passenger's-side light: 18 diodes
• Power draw at 12.8 volts:
  • Stop/turn signal light: 0.259 amps
  • Tail light: 0.062 amps
• Lifetime warranty on LEDs
